 Use:
Description

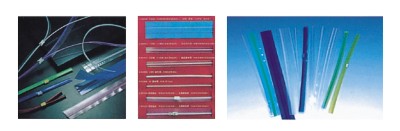

This machine is suitable for LDPE and PP, the zipper strip widely used for packing bag sealing and jointing of food, clothes and textile industrial products.
Performance and Characteristics:
1.Cylinder screws of extruding machine are all treated and processed with optimization with the best hardness and corrosion resistance.
2.Double rolling as rolling equipment adopts torque motor to keep suitable tension.
3.Neat rolling and convenient roll changing.
Plastic Zipper ExtruderMachinery
Main Technical Variables:
| Model： |
ZIP-45 |
| Draw ration of screw ： |
28:1 |
| Tran sducer motor： |
5.5kw |
| Power of assistant machine ： |
0.75kw |
| Heater： |
10kw |
| Cooling： |
5HP |
| Power： |
15kw |
|
Overall dimension(l x w x h)： |
6800 x 1200 x 1800mm |
| Voltage： |
50HZ-60HZ 380v |
| Resin applicable： |
LDPE-PP |
| Capacity： |
10-50(Cycle/min) |
| Extrusion widht： |
3-50mm |
| Thickness of film ： |
0.1-0.3mm |
| Film annulus diameter ： |
φ500mm |
| Diameter Of screw ： |
φ45mm | |
