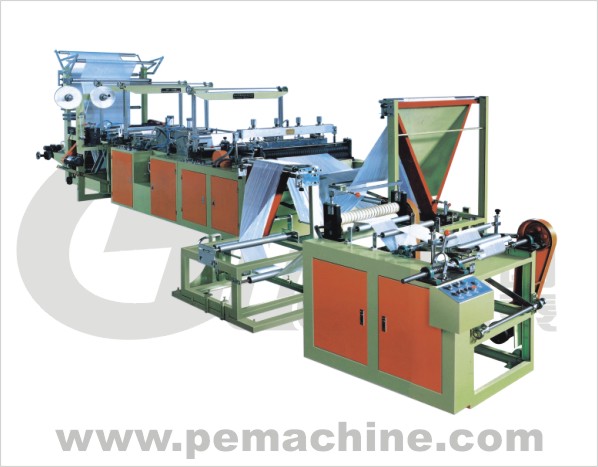

RLD-800、1300 Series Ribbon-through Conituous-rolled Bag Making Machine Views:7131

Performance and Features:
1. The machine is designed and produced by our company based on the latest technology in the world ( first original producer in local market)
2. The machine adopts computer control system, servo motor structure.
3. With functions such as photocell automatic tracking, blank/ color bag-making shift, microcomputer length setting, automatic counting, automatic alarm when reaching the set figure, automatic temperature control.
4. Equipped with mechanical device for functions such as auto cutting, punch hole, half-round hole, strip-go-through, strip moving, side sealing, bottom sealing, point-cutting, folding, continuous rolled and roll separate etc.
5. This machine can produce continuous-rolled strip-through type garbage bag, continuous-roll flat bag and normal flat bag.

Main Technical Variables:

Type
RLD-800
RLD-1300
Max. Width of bag-making(mm)
800mm
1300mm
Max. Length of bag-making(mm)
999mm
999mm
Thickness of Film
0.01-0.05mm
0.01-0.05mm
Capacity
15-35pcs/min
15-35pcs/min
Total power
5kw
10kw
Weight(kg)
2200kg
3200kg
Overall dimension
8200×2600×2200mm
9200×3100×2200mm
