  Your Position :Home >>> Product >>> Bag-Making Machine
RJHQ-800 Fully Automatic Computer-Controlled Patch Bag Handle Bag Multi-function Views:6018







Description

The whole machine adopts microcomputer control , with Panasonic servo motor control system. Arbitrary fixed-length, accurate and stable photoelectric tracking, stopping automatically when the label is lost. Automatic pressure synchronous punching and synchronous sealing. Automatic counting, and can set count alarm. Automatic constant temperature, firm and smooth sealing.

Features

1.Flexible soft loop handle and patch film feeding system,fully automatic.(patent)

2.Pre-sealing knife,heat one double sides and strong for fusing to makie the bags without deformation

3 The sealing knife is made of high quality material and without deformation even heated by high temperature

4 Newly design of sealing knif top lift and turn over system

5 it's designed by heating punching, and it's easy to cut off,the waste is excluded automatically

Main Technical Variables:

Model

RJHQ-800

Length of bag-making

250-730mm

Width of bag-making

250-600mm

Top-folding edge

50-75mm

Bottom gusseted

20-70mm

Speed of bag-making

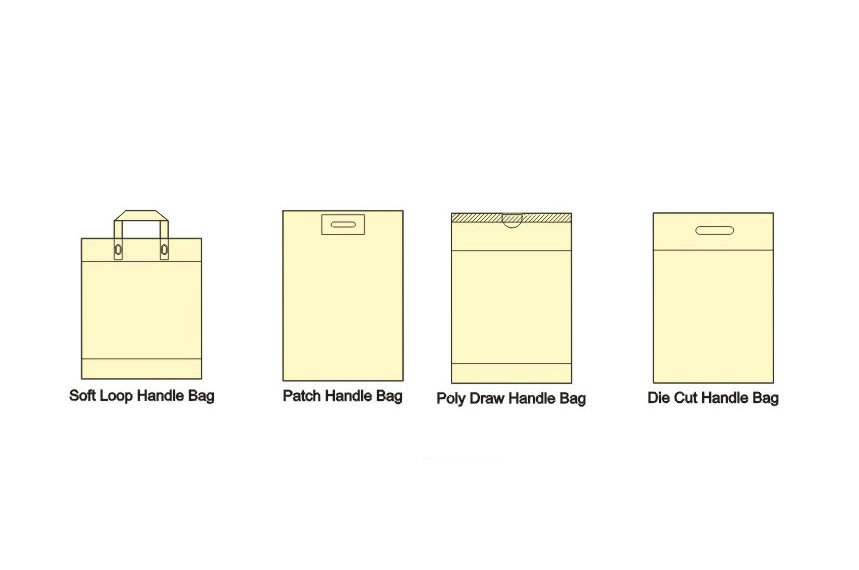

Soft loop handle bag

Patch handle bag

Poly draw handle bag

Die cut handle bag

60pcs/min

60pcs/min

70pcs/min

70pcs/min

Total power

13KW

Machine weight

3500kg

Machine dimension

8200*3100*1870mm
