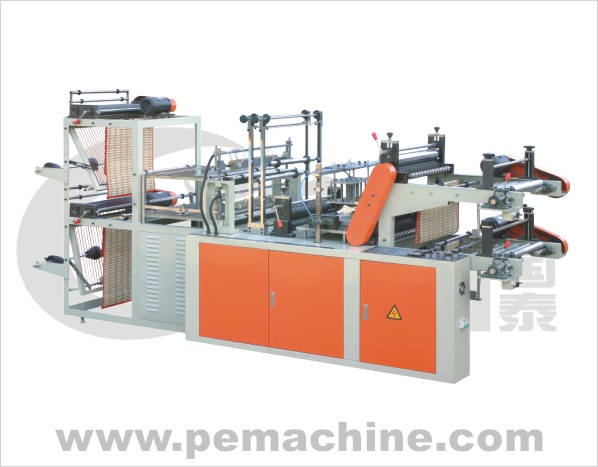

DZB Computer Control High-speed Vest Rolling Bag-making Machine(Double layes) Views:6631

Description
This machine a specially-designed point-cut rolling dual-purpose for vest & flat bags,is controlled by a computer, the step(servo) setting length system reduces the sealing-cutting dimensions errors, and the installation of photoelectric eyes track help make the position of figure of printing bags accurately, the computer numerical control can be selected to adjust the length of bag the machine will automatically stop and sound a warning if there is something wrong with the printing bags.
Use:

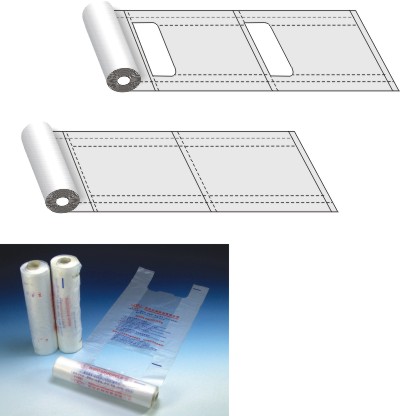

The high and low density polyethylene film bags produced by the machine are applied to shopping in the supermarkets, shops and markets.

Main Technical Variables:
Model DZB-500 DZB-600 DZB-800
Max.Width of bag-making(mm) 400 500 700
Max.length of bag-making(mm) 1200 1200 1200
Bag-making Thickness 0.008-0.15 0.008-0.15 0.008-0.10
Speed of bag-making(pc/min) 140-200 40-120 40-120
Power of motor(kw) 1.1 1.1 1.5
Electric Heating power 1.2 1.6 2.2
Packing Dimensions(L x w x h)mm 3600X1200X1700 3400X1300X1700 3600X1500X1700
Machinery weight (kg) 800 900 100
