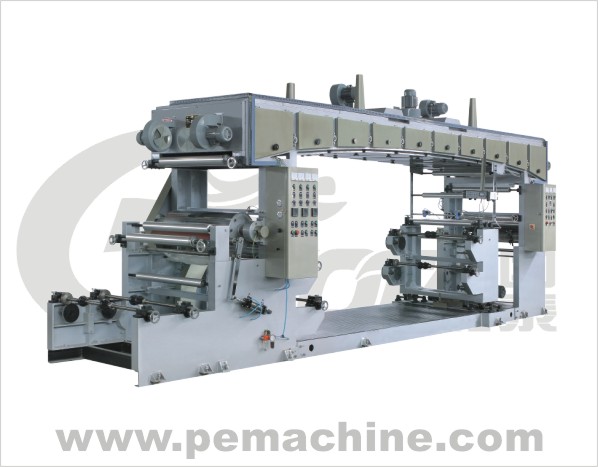

BGF Model Series Dry Laminating Machines Views:12019

Description

Machines in this series are suitable for composition of all kinds of materials in packing industry such as plastic-plastic, paper-plastic  and  aluminum-plastic compositions.
1. Double frequency conversing synchronic timing is adopted for entry  port of  main  machine, making more stable operation.
2. Two means of glue applying, cobwebbing roll sizing and rubber roll gluing.
3. Oil warming system for composite reel, constant  temperature control
4. Double reeling and double unreeling, tension magnetic powder  for  reeling  and  unreeling,  photoelectric  error correction for unreeling.
5. 4-sect heating in drying tunnel, possible to control  temp erature  by  segments,  initiative  guiding roll  in box.

Main Technical Variables:

Model BGF-600 BGF-800 BFG-1000
Width of laminating 600mm 800mm 1000mm
Laminating stratification 2层 2层 2层
Diameter of Roll material 10-70m/min 10-70m/min 10-70m/min
Oven temperate 600mm 600mm 600mm
Total Power 110℃ 110℃ 110℃
Total Power 36kw 44kw 44kw
Weight 4000kg 5400kg 5400kg
overall Dimension 7500×1700×2700mm 7500×2100×2700mm 7500×2100×2700mm
