LFQ-B Series Vertical Automatic Slitting & Rewinding Machine Views:1697

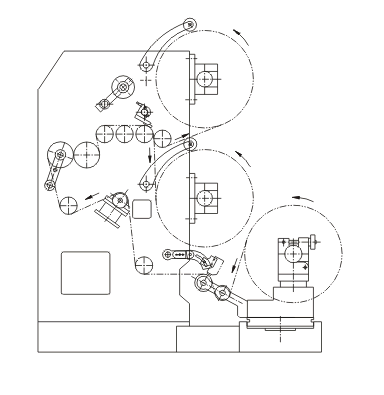

Principle picture

Application:
Application: This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP,CPE, PVC, aluminum foil laminated with film and paper, etc. And can cut edge, separate and cut material
according to different requirements during production.

Performance and Features:
1. Main Motor equipped with inverter for speed regulation.
2. Separated General Control Cabinet, more flexible and even easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and/or
the line of material.
4. Equipped with air shaft for unwinding material loading, magnetic powder brake
and auto tension controller
5. Air shaft for rewinding (frictional cam shaft available for option), Magnetic powder
clutch for rewinding tension control
6. Equipped with air trim discharge conveying system.
7. Automatic meter counting device.
8. Pressure roller for rewinding to make rewinding roll more uniform.
9. Disk knife available for option.
Main technical variables:

Type LFQ-B700 LFQ-B1100 LFQ-B1300
Max.Width of Mother Roll 700mm 1100mm 1300m
Max.Diameter of Mother Roll ф600mm ф600mm ф600mm
Width of Final Roll 50~700mm 50~1100mm 50~1300mm
Max.Diameter of Rewinding ф450mm ф450mm ф450mm
Internal Diameter of RollCore 76mm 76mm 76mm
Mechanical Speed 180m/min 180m/min 180m/min
Slitting and Rewinding Speed 160m/min 160m/min 160m/min
Tolerance ofEPC ±0.5mm ±0.5mm ±0.5mm
Total Power 2.9Kw 3.7Kw 3.7Kw
Weigh t o f Machine 1300kg 1600kg 1900kg
Overall Dimension(L×W×H) L1570×W2100×H1500mm L1570×W2500×H1500mm L1570×W2700×H1500mm
