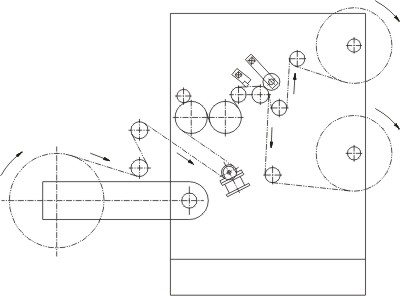

Principle picture
Application:
This machine is suitable for slitting such packing materials as
BOPP, OPP, PET, and PE, etc.Especially having even better effect when
slitting strings for garbage bag.
Performance and Characteristics:
1. The main motor adopts imported variable frequency speed regulating.
2. Unwinding adopts magnetic powder brake tension and automatic
deviation-rectifying.
3. Automatic meter counting and meter number setting for automatic stop.
4. Double air inflatable unwinding shaft can replace material quickly.
5. Material rolling adopts dead-weight type surface rolling.
Main technical variables:
|
| Type |
BFQ600 |
BFQ800 |
BFQ1000 |
|
| Max.Width of Mother Roll |
600mm |
800mm |
1000m |
|
| Max.Diameter of Mother Roll |
ф600mm |
ф600mm |
ф600mm |
|
| Width of Final Roll |
20～600mm |
20～800mm |
20～1000mm |
|
| Slitting and Rewinding Speed |
50-120m/min |
50-120m/min |
50-120m/min |
|
| Tolerance of EPC |
＜±0.5mm |
＜±0.5mm |
＜±0.5mm |
|
| Total Power |
2.2Kw |
3Kw |
3.5Kw |
|
| Weight of Machine |
1200kg |
1400kg |
1600kg |
|
| Overall Dimension |
L1900×W1000×H1300mm |
L2300×W1000×H1300mm |
L2500×W1000×H1300mm |
| |
