Application:

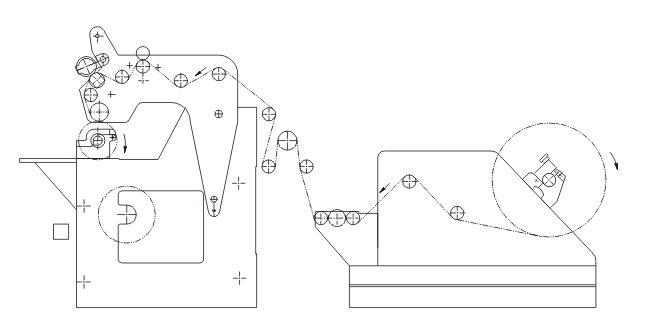

Special design for paper in roll slitting and rewinding

Performance and Characteristics:
1、 Chain type material loading, unwinding with EPC device.
2、Unwinding/rewinding shaft can be taken off completely,
easier operation.
3、Automatic meter counting and meter number setting for
automatic stop.
4、Air inflatable shaft for unwinding/rewinding.
5、Automatic blowing rim charge conveying device.
6、Disk knife device for slitting.

Main technical variables:

Type	ZWQ1200
Mechanical speed	5～200m/min
Diameter of unwinding	650mm
Width of unwinding roll	1200mm
Width of final roll	30-1200mm
Diameter of rewinding roll	ф400mm
Tension control	Magneticpowderbrake
Total Power	8Kw
Weight of Machine	3500kg
Overall Dimension	L3200×W2100×H1600mm
