Description

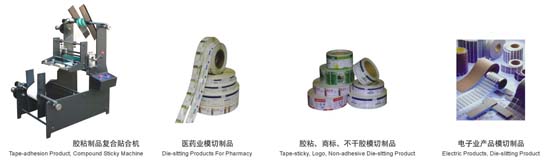

This machine die cuts through flat pressing and high precision unit while shifting materials and slitting are controlled through servomotor. The printing abel’s two-faced and Lengthways the color marks from three optics electric eyec to have exquisite tracking to locate, die cut, collect the discarded waste,slit or auto label in one processing.It is very applicable to die cut free paper adhesive tape,Dacron film trademark and laser anti-false trademark.It is an ideal equipment for soft printing machine, continuous thread printing machine, intaglio printing machine and anti-false trademark die press machine and is also the most efficient equipment for whole wheel rotation quick roll trademark printing machine. It is also applicable to die cutting to form for the Electronic and adhesive tape sectors.

Note : The function can be expanded
1. Die membrane trademark stickers.
2. Delay Reel Stamping Die
3. Stamping Die laser hologram

Main Technical Variable：

Type :	320
Die speed :	20-180Meeting /Pm
Roll diameter :	500mm
Web maximum width :	320mm
Die maximum width :	300mm
Die maximum length :	290mm
Positioning accuracy :	±0.1mm
Total power :	2.2kw
Supply Voltage :	220v10%
Weight machines :	about1500kg
The dimension :	2.8(Long )×0.95（Kuan ）×1.4（High ）（m）
