Characteristics:

Drink straw makers are composed of frequency extruding system,tooling,cooling sink or vacuum cooling sink,drawing and cutting devices etc.It has such features sa reasonable structre and steady operation,each part are all fine finshed,There are single-color,double,double-color,tri-color and four-color drink straw makers,which all can produce the various colors straws with the diameter from 1to 14mm.

Application:

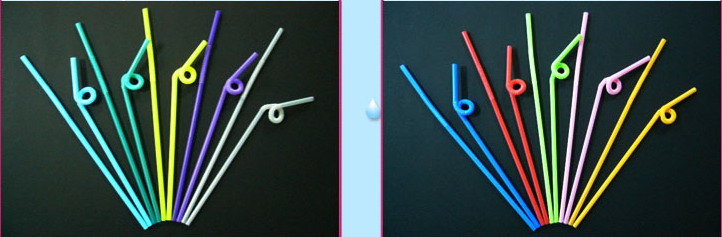

This machine is mainly to produce drink straw,sprinkler pipe,otton stick,candy stick,tooth pick,tooth pick,the refills of ball point pen and water color pen,toy pipe industrial casing pipe,droping tube and other small open pipes etc.It uses the materials such as PE and PP etc.

Main Technical Parameters:

Mode		Monochromatic Straw	Dichromatic Straw Machine	Tricolor Straw Machine	Four color Straw Machine
	Screw dia	50 or 55	50 or 55	50 or 55	50 or 55
Out	Main Screw L/D	25;1	25;1	25;1	25;1
	Motor	11kw or 15kw	11kw or 15lw0.75×1	11kw or 15kw 0.75×1	11kw or 15kw0.75×1
Take up and Cutting Unit	Transducer	0.75kw×2	0.75kw×2	0.75kw×2	0.75kw×2
	Extruding output	10-25kg	10-25kg	10-25kg	10-25kg
Capability	Product length	≥5mm	≥5mm	≥5mm	≥5mm
	Product dia	0.8mm-8mm or 0.8mm-13mm	0.8mm-8mm or 0.8mm-13mm	0.8mm-8mm or 0.8mm-13mm	0.8mm-8mm or 0.8mm-13mm
Total weight(kg)		900kg	1000kg	1200kg	1300kg

Note：As the products are developing day by day,the technical date are subjectto change without notice
