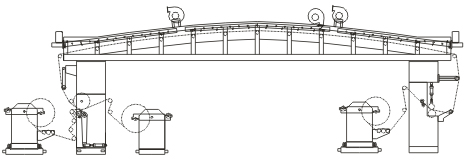

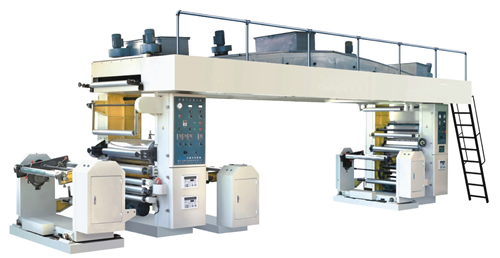

GT-B High-speed Dry-type Laminating Machine Views:1656

Application:
This machine is suitable for laminating plastic-plastic, paper-plastic, paper-paper and aluminum foils and other laminated materials in the packing industry.

Main technical variables:
Type GT-600B GT-800B GT-1000B
Max.LaminatingWidth 600mm 800mm 1000m
Max.Web Width 620mm 820mm 1020mm
Max.LaminatingSpeed 110m/min 110m/min 110m/min
Max.MechanicalSpeed 120m/min 120m/min 120m/min
Max.DiameteroMaterialRoll ф600mm ф600mm ф600mm
InternalDiameter of Roll Core ф76mm ф76mm ф76mm
LengthofDrying Channel 7500mm 7500mm 7500mm
PowerforDrying Channel 23.4kw 31.2kw 39kw
TotalPower 39.5kw 48.8kw 58.5kw
WeightoMachine 7000kg 8000kg 9000kg
OverallDimension L9000×W2100×H3000mm L9000×W2300×H3000mm L9000×W2500×H3000mm

Performance and Features:
1.The glue coating and laminating motor adopts double variable frequency synchronous speed regulating to replace the old shaft driving transmission structure.
2. Smooth material feeding and synchronous linear speed ensure stretching of the base material.
3.The bridge-type three-segment drying tunnel heating with three section automatic temperature control.
4. Gluing and laminating adopt pneumatic pressing rollers.
5. The two kinds of doctor blade type and pressing-type gluing ways can be chosen at will according to different processes.
6 Unwinding and Rewinding adopts magnet power tension control.
7. The interlocking and subsection temperature control system can control temperature at the best state.
8. urret typeunwinding station with EPC system.non stop roller change.
9. Turret type rewinding station with EPC system.non stop roller change.
10. Equipped with auto tension system for the whole machine
