Application:

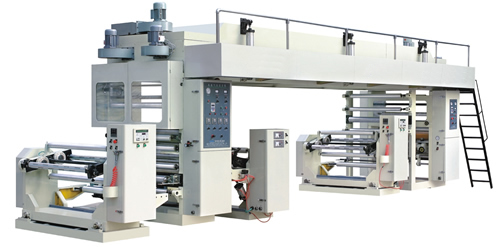

This machine is suitable for the double-layer or multiple-layer lamination of such roll film material as BOPP, PET, nylon,CPP,CPE aluminum foil and paper, etc.
Main technical variables:
|
| Type |
GT-600C |
GT-800C |
GT-1000C |
|
| Max.LaminatingWidth |
600mm |
800mm |
1000mm |
|
| Max.Web Width |
650mm |
850mm |
1050mm |
|
| Max.LaminatingSpeed |
130m/min |
130m/min |
130m/min |
|
| Max.MechanicalSpeed |
140m/min |
140m/min |
140m/min |
|
| Max.DiameteroMaterialRoll |
ф600mm |
ф600mm |
ф600mm |
|
| InternalDiameter of Roll Core |
ф76mm |
ф76mm |
ф76mm |
| LengthofDrying Channel |
9000mm |
9000mm |
10000mm |
|
| PowerforDrying Channel |
27kw |
36kw |
45kw |
| TotalPower |
57kw |
66kw |
77kw |
|
| WeightoMachine |
8000kg |
9000kg |
10000kg |
|
| OverallDimension |
L11000×W2300×H3100mm |
L11000×W2500×H3100mm |
L11000×W2700×H3100mm |
|
Performance and Features:
1.Coating and laminating of main machine are of double-shaft synchronous frequency conversion and feedback control.
2.Thickness of glue coating can be chosen by mesh of anilox roller and doctor blade
3.Auto tension controller for three section constant tension control.
4.Turret type unwinding station.pre-tension control for non-stop shaft exchange.
5.Unwinding station equipped with EPC system.
6.Turret type rewinding station.pre-tension control for non-stop shaft exchange.
7.Movable doctor blade with pneumatic back pressure
8.Three independent constant temperature section drying system with infra heating tube and air blower, inner circulated intake and exhaust device available to ensure the full dryness of web
9.Pneumatic lifting drying channel and operating platform for web stretch, active synchronous running leading roller inside drying channel.
10.Pre-heating before laminating, water cooling roller for laminated web.
11.Inflatable Air Shaft for web loading/unloading
12.Three rollers nip laminating method.laminating pressure more even to ensure higher peel strength. |
