  Your Position :Home >>> Product >>> Film Blowing Machine

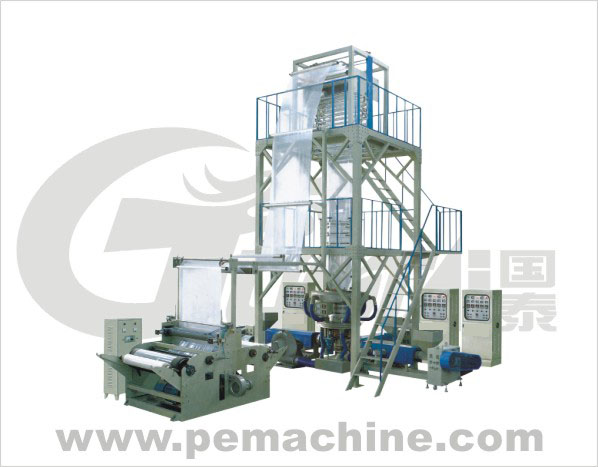

SJ-45X3/FM 1000 SJ-50X3/FM 1200 SJ-55X3/FM 1500 Three-layer Common-extruding Rot Views:8452

Characteristics: Characteristic
1.Die head is layer type spiral mandrel, continuous 3600  rotation.
2.Screen  pack changer design is   reliable,  safe in operation and change the fitter
  screen easier.
3.Various functional parts may be installed  to  the  lies.,such as length counting
   device, vertical cutting device,  cooling  water  row  pipe,  film  spreading roller,
   scrap collecting device.

Use:
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home.
It is optimum designed on the trounds  of  preference  of analogous lines in foreign and home. The lines can be blown cotinuous 800/1500mm in  fold  width 0.08mm
in the thickness packaging films, film has good insulation, for instance holding temperature,  antihumid, antibreeze, anti-rain,anti-rost, insulation oxygen,oil
resistive, and so used for light and heavy-duty packaging,  for example fresh fruits, meat-feeding,salt  vegetables, fresh milk, drink.



Main Technical Variables
Model

3SJ-G1000

3SJ-G1200 3SJ-G1500
Screw Diameter ф55×2 ф60×1 ф60×2 ф65×1 ф65×2 ф70×1
Screw Ratio L/D 28:1 28:1 28:1
Screw Speed 15-150r/min 15-150r/min 15-150r/min
Main Motor Power 15Kw×2 18.5Kw×1 18.5Kw×2 22Kw×1 22Kw×2 30Kw×1
Extrusion Output(Single) 50kg/h 80kg/h 100kg/h
Range of Die ф150 φ200 ф200 φ250 ф250 ф300
Single-sided Thickness of Film 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm
Max. Folding Width of Film 1000mm 1200mm 1500mm
Electric Total Capacity 76Kw 88Kw 102Kw
Overall Dimension 6600×4100×5000mm 6800×4300×6000mm 7000×4800×7500mm
Weight of Machine 6T 8T 10T
